Tesla reference

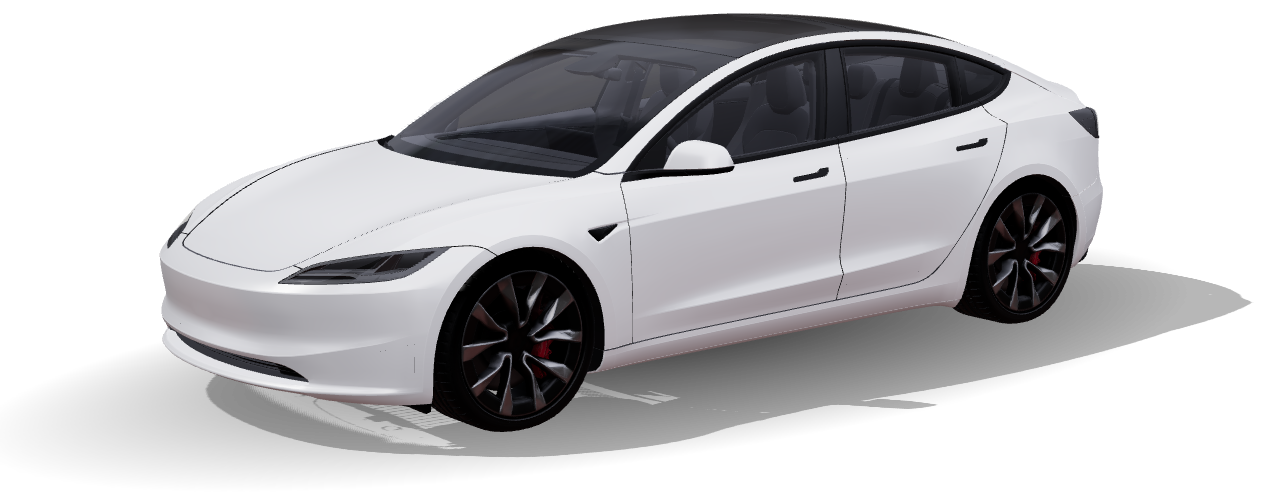

Model 3 Highland (2024–)
The 5 trims of the Tesla Model 3 Highland (2024–): battery, rated range and dimensions.
Trims
| Trim | Years | Drive | Markets | Battery | Capacity (gross) | WLTP | EPA |
|---|---|---|---|---|---|---|---|
| Rear-Wheel Drive | 2024– | Rear-Wheel Drive | United States, Europe, United Kingdom, China, Asia-Pacific | LFP (CATL, Shanghai) Europe, United Kingdom, China, Asia-PacificLFP (CATL, Fremont) United States | 60–64 kWh usable 57–60 kWh | 513–534 km | 272 mi |
| Long Range | 2024– | All-wheel drive | United States, Canada, Europe, United Kingdom, China, Asia-Pacific | NMC (LG, Shanghai) Europe, United Kingdom, China, Asia-PacificNCA (Panasonic, Fremont) United States, CanadaNMC (LG, Fremont) United States | 78.1–82 kWh usable 75–79 kWh | 629–678 km | 341–346 mi |
| Long Range Rear-Wheel Drive | 2024– | Rear-Wheel Drive | United States, Canada, Europe, United Kingdom, Asia-Pacific | NMC (LG, Shanghai) Europe, United Kingdom, Asia-PacificNCA (Panasonic, Fremont) United States, Canada | 78.1–82 kWh usable 75–79 kWh | 640–750 km | 346–363 mi |
| Performance | 2024– | All-wheel drive | United States, Canada, Europe, United Kingdom, China, Asia-Pacific | NMC (LG, Shanghai) Europe, United Kingdom, China, Asia-PacificNCA (Panasonic, Fremont) United States, Canada | 78.1–82 kWh usable 75–79 kWh | 528–571 km | 298–314 mi |
| Standard | 2025– | Rear-Wheel Drive | United States | NMC (Fremont) United States | – | – | 321 mi |
Rated range, depending on wheels and model year. WLTP in Europe, EPA in the United States.
Dimensions
- Length
- 4,720 mm
- Width (without mirrors)
- 1,850 mm
- Height
- 1,440 mm
- Wheelbase
- 2,875 mm
- Doors
- 4
From the Tesla owner's manual. Read the manual
Frequently asked questions
Which battery does the Model 3 Highland (2024–) use?
Rear-Wheel Drive: LFP (CATL, Shanghai), markets: Europe, United Kingdom, China, Asia-Pacific; LFP (CATL, Fremont), markets: United States. Long Range: NMC (LG, Shanghai), markets: Europe, United Kingdom, China, Asia-Pacific; NCA (Panasonic, Fremont), markets: United States, Canada; NMC (LG, Fremont), markets: United States. Long Range Rear-Wheel Drive: NMC (LG, Shanghai), markets: Europe, United Kingdom, Asia-Pacific; NCA (Panasonic, Fremont), markets: United States, Canada. Performance: NMC (LG, Shanghai), markets: Europe, United Kingdom, China, Asia-Pacific; NCA (Panasonic, Fremont), markets: United States, Canada. Standard: NMC (Fremont), markets: United States.
What is the range of the Model 3 Highland (2024–)?
Rear-Wheel Drive: 513–534 km WLTP, 272 mi EPA. Long Range: 629–678 km WLTP, 341–346 mi EPA. Long Range Rear-Wheel Drive: 640–750 km WLTP, 346–363 mi EPA. Performance: 528–571 km WLTP, 298–314 mi EPA. Standard: 321 mi EPA.
What is the battery capacity of the Model 3 Highland (2024–)?
Rear-Wheel Drive: gross 60–64 kWh, usable 57–60 kWh. Long Range: gross 78.1–82 kWh, usable 75–79 kWh. Long Range Rear-Wheel Drive: gross 78.1–82 kWh, usable 75–79 kWh. Performance: gross 78.1–82 kWh, usable 75–79 kWh.
What are the dimensions of the Model 3 Highland (2024–)?
It is 4,720 mm long and 1,850 mm wide without mirrors, with a 2,875 mm wheelbase, according to the owner's manual.
What sets the Model 3 Highland (2024–) apart from the Model 3 (2017–2023)?
The Model 3 Highland (2024–) is 4,720 mm long versus 4,695 mm for the Model 3 (2017–2023), with the same 2,875 mm wheelbase. The trims, batteries and range of each are detailed on their spec sheet.
Sources
fueleconomy.gov · electrive.com · ev-database.org · evkx.net · techcrunch.com · teslamotorsclub.com
